Olympic Fasteners

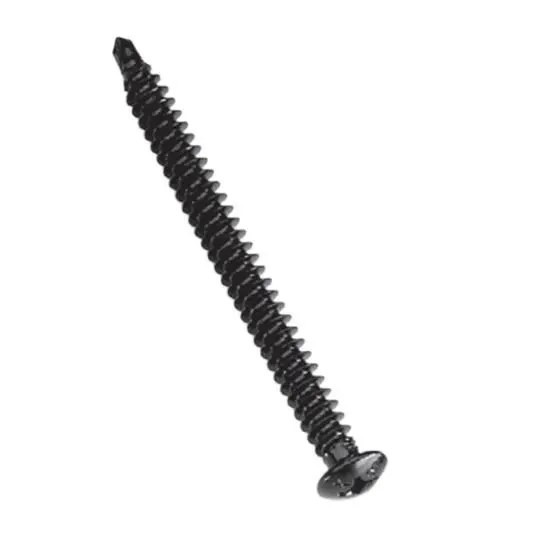

HD multipurpose. For fixing to light gauge steel, concrete & timber. Fasteners up to 405mm available.

View Technical Specification

View Data Sheet Get In Touch

Technical Information

PRODUCT USE

Steel & Wood Decks - The fastener must penetrate steel and wood decks a minimum of 20 mm.

Structural Concrete Decks - The fastener must penetrate structural concrete decks a minimum of 25 mm.

Drive the fastener until a slight depression is seen around the plate, or with very rigid insulation boards, watch for the plate to dimple.

NOTE: Care must be taken not to overdrive the fastener causing subsequent damage to the insulation facer. The fastener must be tight enough so that the plate does not turn.

Code	Size		Code	Size
HD32	6.3x32	Multipurpose Screws	HD175	6.3x175	Multipurpose Screws
HD50	6.3x50	Multipurpose Screws	HD200	6.3x200	Multipurpose Screws
HD75	6.3x75	Multipurpose Screws	HD225	6.3x225	Multipurpose Screws
HD100	6.3x100	Multipurpose Screws	HD250	6.3x250	Multipurpose Screws
HD115	6.3x115	Multipurpose Screws	HD275	6.3x275	Multipurpose Screws
HD125	6.3x125	Multipurpose Screws	HD300	6.3x300	Multipurpose Screws
HD150	6.3x150	Multipurpose Screws	HD350	6.3x350	Multipurpose Screws
			HD405	6.3x405	Multipurpose Screws
